VG series-960 -Multi-combination Digital Advertising Display
Product details
Outdoor fixed installation, suitable for the construction of large LED screens in the neighborhood. Quick installation, good waterproof performance and long service life.

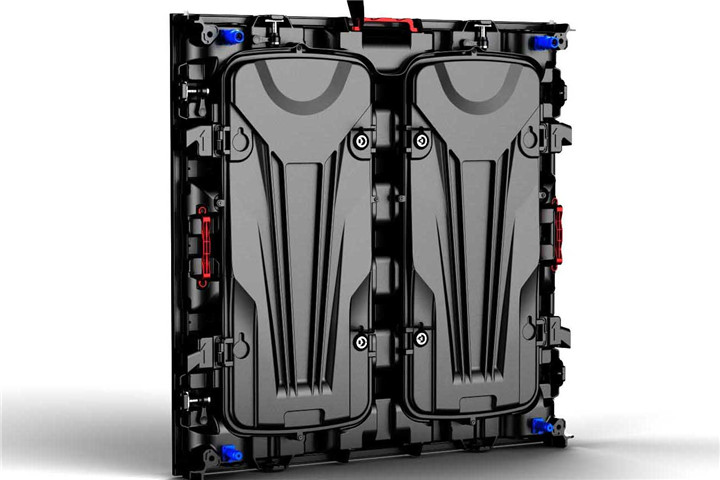

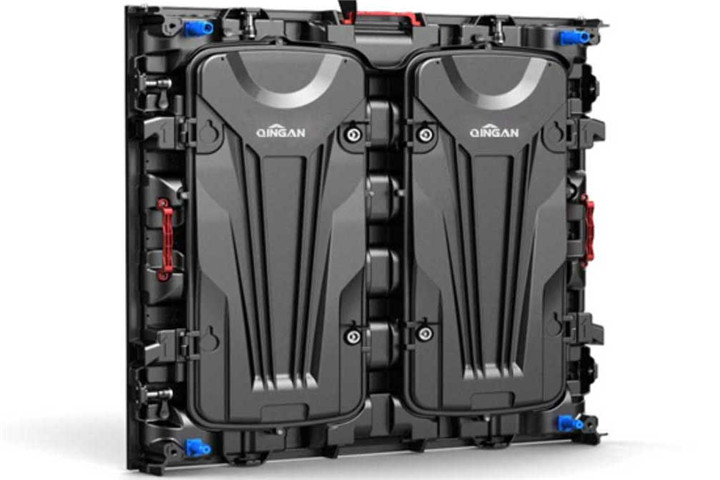

High performance cabinet - High strength enough, good corrosion resistance
The cabinet is made of die-casting magnesium aluminium alloy to ensure the flatness and strength of the screen, making it safer and more stable in use
At the same time, the lighter weight (29kg/m2) saves both labor installation costs and installation structure.
Special treatment on the surface of the cabinet: electrophoresis + spraying double protection to ensure good corrosion resistance, not afraid of the outdoor wind and rain.

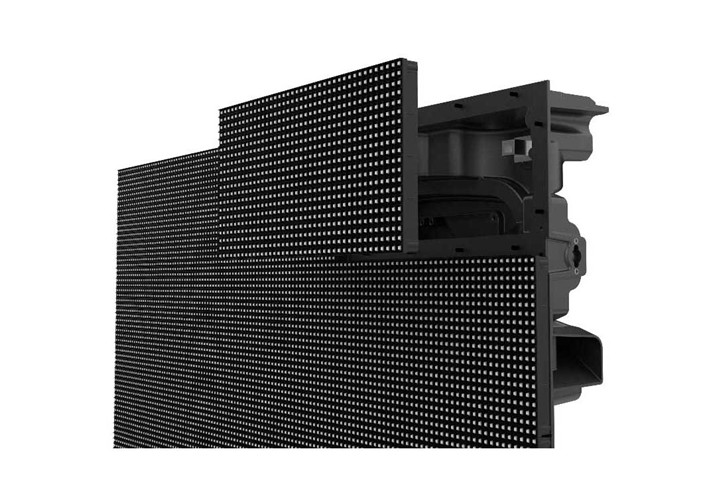

Fully enclosed design, no need to worry about water vapour erosion screen, dustproof, waterproof and anti-corrosion, the protection level reaches the former IP65 after IP54, even when encountering heavy rain can also run smoothly

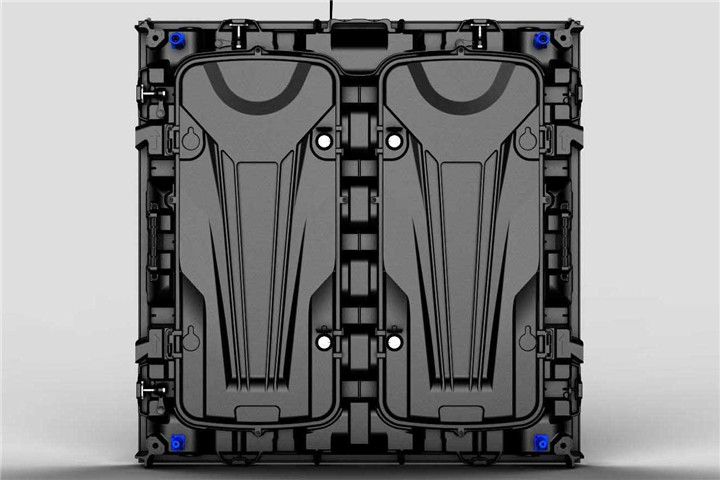

High performance cabinet - unique type of heat dissipation design, no fan for more peace of mind

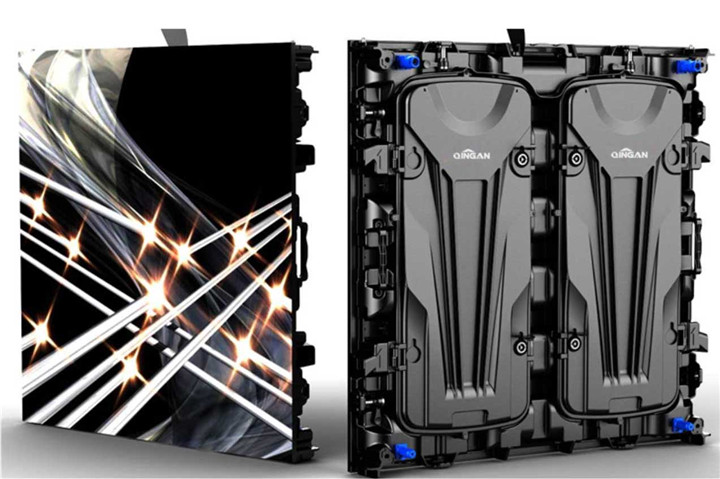

Modern minimalist style appearance, compared with the traditional simple cabinet on the market, the overall more beautiful and recognizable.
The unique heat dissipation design greatly enhances the heat dissipation area of the back cover of the case and enhances the heat dissipation capacity, so even in a high-temperature environment, it can still work normally.
Fanless silent design, free from noise, more quiet and peace of mind

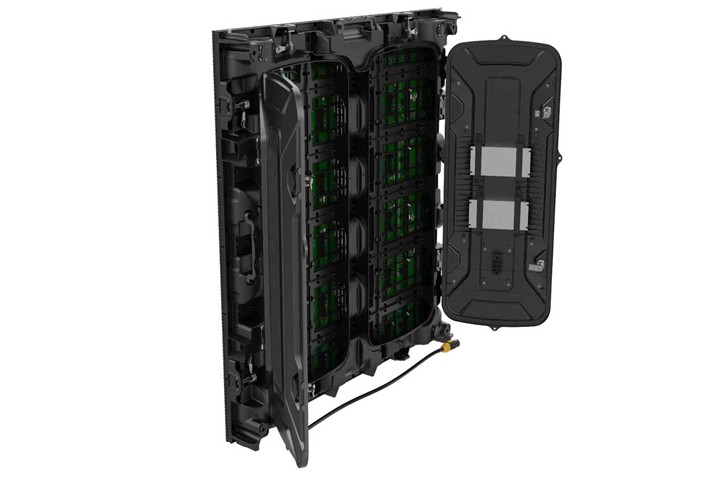

Cabinet for back maintenance with double door design, more convenient for repair.
5500nits brightness, and different installation positions, to achieve the same perfect picture rendering.
7000:1 ultra-high contrast ratio and vivid color, which can more perfectly express the high-definition picture quality and rich color
Left and right handle + upper carrying handle design, installation site handling more convenient and safer.
HD display - 3840Hz ultra-high refresh frequency
The standard 3840Hz super refresh frequency makes the screen stable without trailing or frame flash lines when displaying high-speed moving objects, ensuring a delicate and comfortable viewing experience

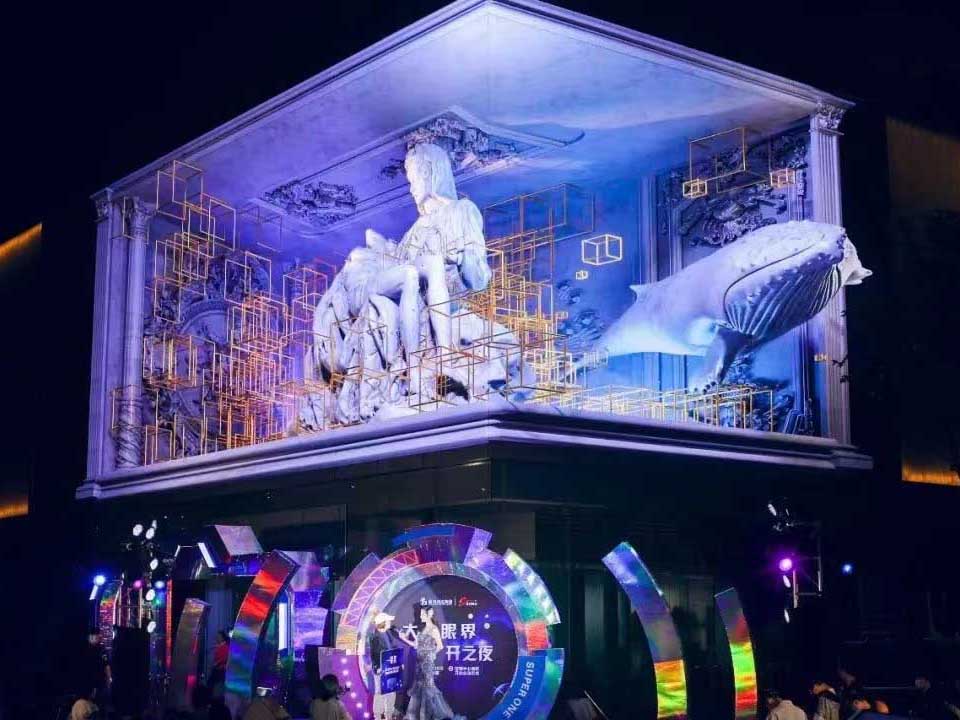

Application
Technical Parameter
| JR-series Technical parameter | |||||
| Pixel Pitch | 2.6mm | 2.97mm | 3.91mm | 3.91mm(Outdoor) | 4.81mm(Outdoor) |
| LED | SMD1515(Black) | SMD2020 | SMD2020 | SMD1921 | SMD1921 |
| Pixel Density | 147456Pixel㎡ | 112896Pixel㎡ | 65536Pixel㎡ | 65536Pixel㎡ | 43264Pixel㎡ |
| Brightness | 800-1200nits | 4000-4500nits | 3500-4000nits | ||
| Color Temperature | 6500-9500k | ||||
| Scan | 1/32 | 1/21 | 1/16 | 1/16 | 1/13 |
| Panel Dimension(W*H*D) | 500mm*500mm*75mm / 500mm*1000mm*75mm | ||||
| Panel Resolution | 192*192Pixel/ 192*384Pixel | 168*168ixel/ 168*336Pixel | 128*128Pixel/ 128*256Pixel | 128*128Pixel/ 128*256Pixel | 104*104Pixel/ 104*208Pixel |
| Panel Weight | 5.4kg /11kg | 5.8kg/11.4kg | |||
| Cabinet Material | Aluminum | ||||
| Max Power Consumption | ≤650w㎡ | ≤800w㎡ | |||
| Average Power Consumption | ≤325w㎡ | ≤400w㎡ | |||
| Viewing Angle | H:160° V:160° | H:160° V:160° | |||
| Refresh Aate | 3840Hz | ||||
| Gray Scale | 14-16bit | ||||
| IP Rating | IP30 | IP65 | |||
| Operating humidity | 10%-60%RH | 10%-90%RH | |||
| Operating temperature | -20℃～+45℃ | ||||
| Max.Stacking | 12m | ||||
| Max.Hanging | 12m | ||||
| Curve(Optional) | -10°～+10° | ||||
| Lifetime | 50,000（H） | ||||
| Storage Temp/Humidity | -40℃～+60℃；10%-60%RH | ||||
